Sale!

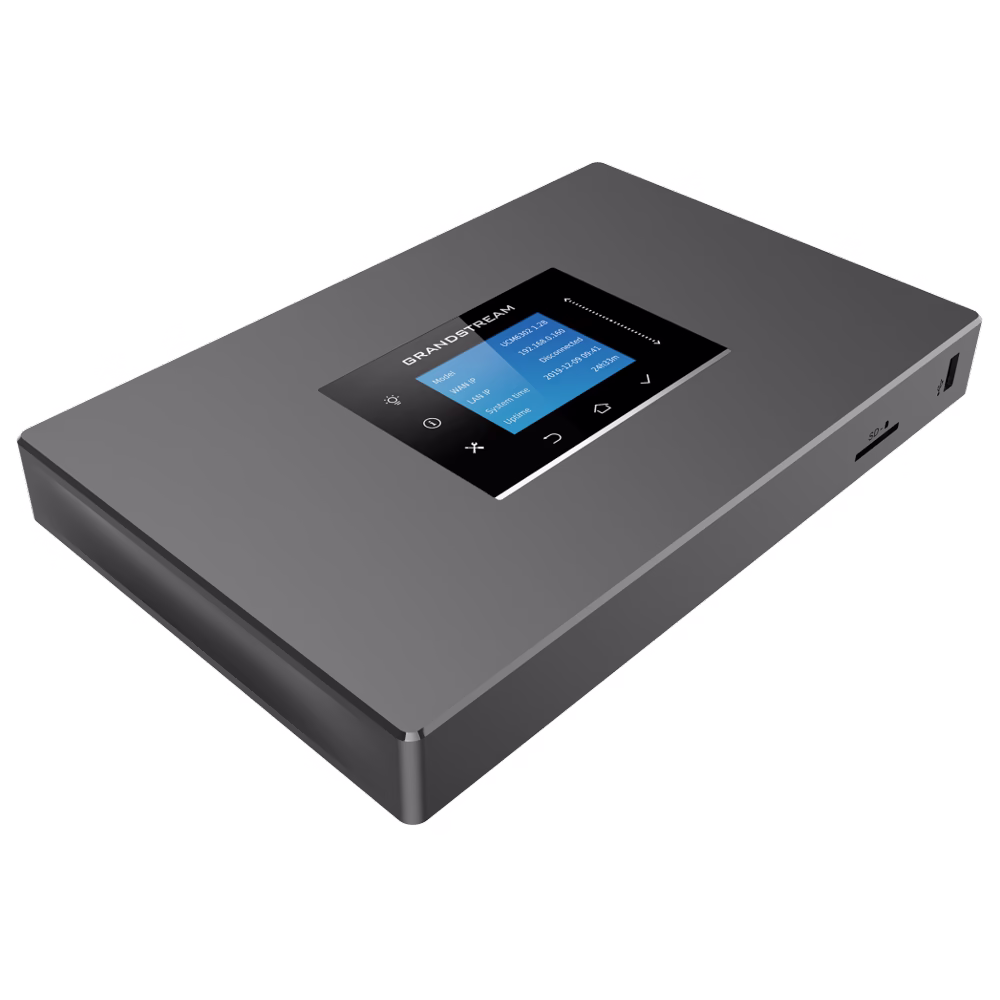

Grandstream UCM6301 IP PBX

Original price was: $439.50.Current price is: $429.50.

A powerful unified communication & collaboration solution for any organization, the UCM6300 series provides a high-end unified communications solution packed with an ecosystem of mobility, security, video and collaboration tools.

Supports up to 3000 users and up to 450 concurrent calls
Zero configuration provisioning of Grandstream SIP endpoints
Built-in conferencing & meetings platform; supports desktop, Wave app, and SIP endpoints
Wave for Android, iOS, Chrome and Firefox browsers allows communication with all UCM6300 users & solutions
API available for third-party integrations, including CRM and PMS platforms
Advanced security protection with secure boot, unique certificate and random default password to protect calls and accounts
Three Gigabit auto-sensing RJ45 network ports with integrated PoE+ and support NAT router
Automated NAT firewall traversal service facilitates secure remote connections
Supports Full-Band Opus voice codec and H.264/H.263/ H.263+/H.265/VP8 video codec, jitter resilience up to 50% packet loss
Compatible with GDMS for cloud setup, management and monitoring
Based on Asterisk* version 16 open source telephony operating system

Description

The UCM6300 series allows businesses to build powerful and scalable unified communication and collaboration solutions. This series of IP PBXs provide a platform that unifies all business communication on one centralized network, including voice, video calling, video conferencing, video surveillance, web meetings, data, analytics, mobility, facility access, intercoms and more. The UCM6300 series supports up to 3000 users and includes a built-in web meetings and video conferencing solution that allows employees to connect from the desktop, mobile, GVC series devices and IP phones. It can be paired with the UCM6300 ecosystem to offer a hybrid platform that combines the control of an on-premise IP PBX with the remote access of a cloud solution. The UCM6300 ecosystem consists of the Wave app for web and mobile, which provides a hub for collaborating remotely, and UCM Remote Connect, a cloud NAT traversal service for ensuring secure remote connections. The UCM6300 series also offers cloud setup and management through GDMS and an API for integration with third-party platforms. By offering a high-end unified communications and collaboration solution packed with a suite of mobility, security, meeting and collaboration tools, the UCM6300 series provides a powerful platform for any organisation.

NO MONTHLY PER-SEAT FEES. This is an all-inclusive telephone system
Supports up to 500 users
Supports up to 75 concurrent calls
Zero configuration provisioning of Grandstream SIP endpoints
Built-in conferencing & meetings platform; supports desktop, Wave app, and SIP endpoints
Wave for Android, iOS, Chrome and Firefox browsers allows communication with all UCM6300 users & solutions
API available for third-party integrations, including CRM and PMS platforms
Advanced security protection with secure boot, unique certificate and random default password to protect calls and accounts
Three Gigabit auto-sensing RJ45 network ports with integrated PoE+ and support NAT router
Automated NAT firewall traversal service facilitates secure remote connections
Supports Full-Band Opus voice codec and H.264/H.263/ H.263+/H.265/VP8 video codec, jitter resilience up to 50% packet loss
Compatible with GDMS for cloud setup, management and monitoring
Based on Asterisk* version 16 open source telephony operating system

Additional Information

Weight	1211 g
Dimensions	270 × 175 × 36 mm
Maximum Call Capacity	Users: 500 Concurrent calls (G.711): 75 Max concurrent SRTP calls (G.711): 50
Analog Telephone FXS Ports	1 RJ11 Port All Ports have lifeline capability in case of power outage
PSTN Line FXO Ports	1 RJ11 Port All Ports have lifeline capability in case of power outage
Network Interfaces	Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+
NAT Router	Yes (supports router mode and switch mode)
Peripheral Ports	1USB 3.0, 1SD card interface
LED Indicators	None
LCD Display	320×240 color LCD with touch screen for Shortcut Keys and Scroll Bar
Reset Switch	Yes, long press for factory reset and short press for reboot
Voice-over-Packet Capabilities	LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, NetEQ, FEC 2.0, Jitter resilience up to 50% audio packet loss
Voice and Fax Codecs	Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38
Video Codecs	H.264, H.263, H263+, H.265, VP8
API	Full API available for third-party platform and application integration
Telephony Operating System	Based on Asterisk version 16
DTMF Methods	In-band audio, RFC2833, and SIP INFO
Provisioning Protocol & Plug-and-Play	Mass provisioning using AES encrypted XML configuration file, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk
Network Protocols	TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN®
Disconnect Methods	Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect
Media Encryption	SRTP, TLS, HTTPS, SSH, 802.1X
Universal Power Supply	Input: 100 ~ 240VAC, 50/60Hz; Output: DC 12V, 1.5A
Dimensions	270mm(L) x 175mm(W) x 36mm(H)
Weight	Unit Weight: 715g; Package Weight: 1211g
Temperature & Humidity	Operating: 32 – 113oF / 0 ~ 45oC, Humidity 10 – 90% (non-condensing) Storage: 14 – 140oF / -10 ~ 60oC, Humidity 10 – 90% (non-condensing)
Mounting	Wall mount & Desktop
Multi-Language Support	-Web UI: English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech, Turkish -Customizable IVR/voice prompts: English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic, Nederlands -Customizable language pack to support any other languages
Caller ID	Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT
Polarity Reversal/Wink	Yes, with enable/disable option upon call establishment and termination
Call Center	Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ work-load, in-queue announcement
Customizable Auto Attendant	Up to 5 layers of IVR (Interactive Voice Response) in multiple languages
Maximum Attendees of Conference Bridges	2 Video Conference rooms and up to 12 parties with 1080p, assuming 4 video feeds + 1 screen sharing (H.264 & G.711) Voice Conference: Up to 75 parties (G.711)
Wave Mobile App	Allows Android & iOS users to join UCM-hosted meetings & communicate with other users/solutions registered to the UCM6300
Call Features	Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, call back, dial by name, emergency call, call follow me, blacklist/whitelist, voice conference, video conference, event list, feature codes, busy camp-on/ call completion, voice control
Firmware Upgrade	Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products
Compliance	FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368-1, ETSI ES 203 021, ITU-T K.21 IC: ICES-003, CS-03 Part I Issue 9 RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/CA S002, AS/CA S003.1/.2 Power adapter: UL 60950-1 or UL 62368-1

Downloads

Datasheet
