IPC-PDW3849-A180-AS-PV-ANZ
IPC-PDW3849-A180-AS-PV-ANZ - Image 2
IPC-PDW3849-A180-AS-PV-ANZ - Image 3
IPC-PDW3849-A180-AS-PV-ANZ - Image 4
IPC-PDW3849-A180-AS-PV-ANZ - Image 5
IPC-PDW3849-A180-AS-PV-ANZ - Image 6
IPC-PDW3849-A180-AS-PV-ANZ - Image 7
IPC-PDW3849-A180-AS-PV-ANZ
Limited Time Offer

Original price was: $500.00.Current price is: $345.00.

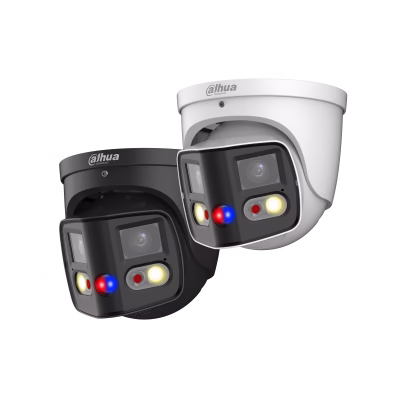

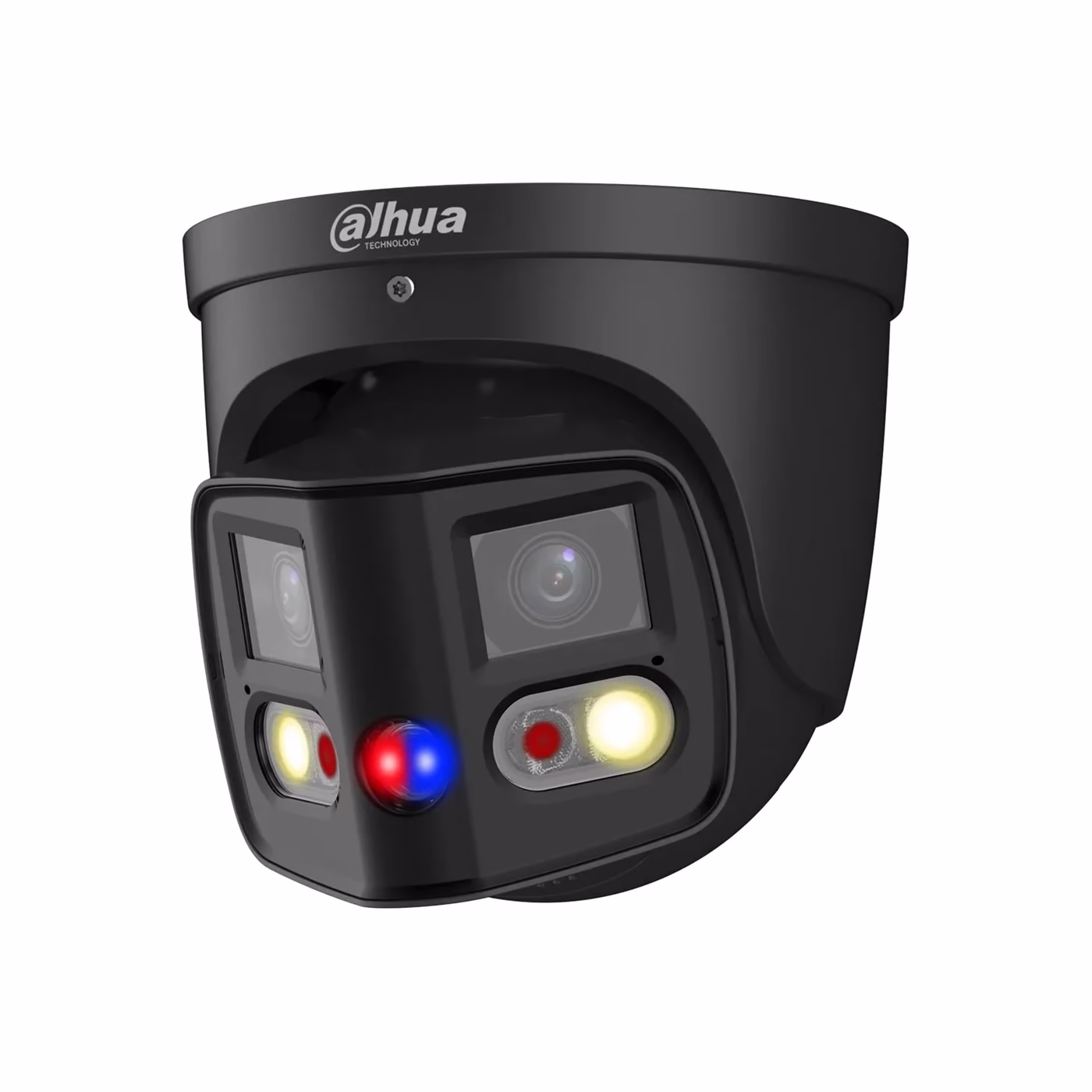

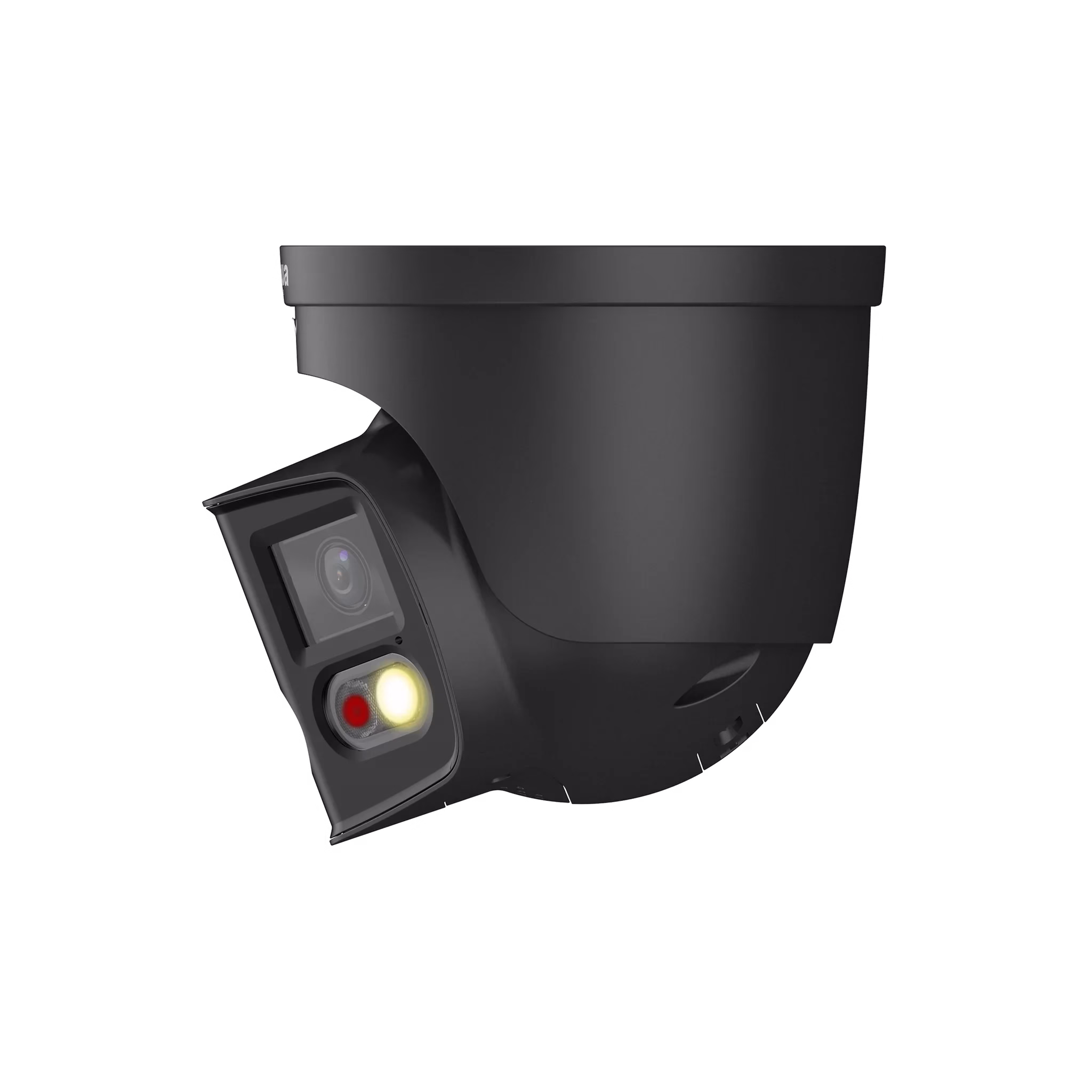

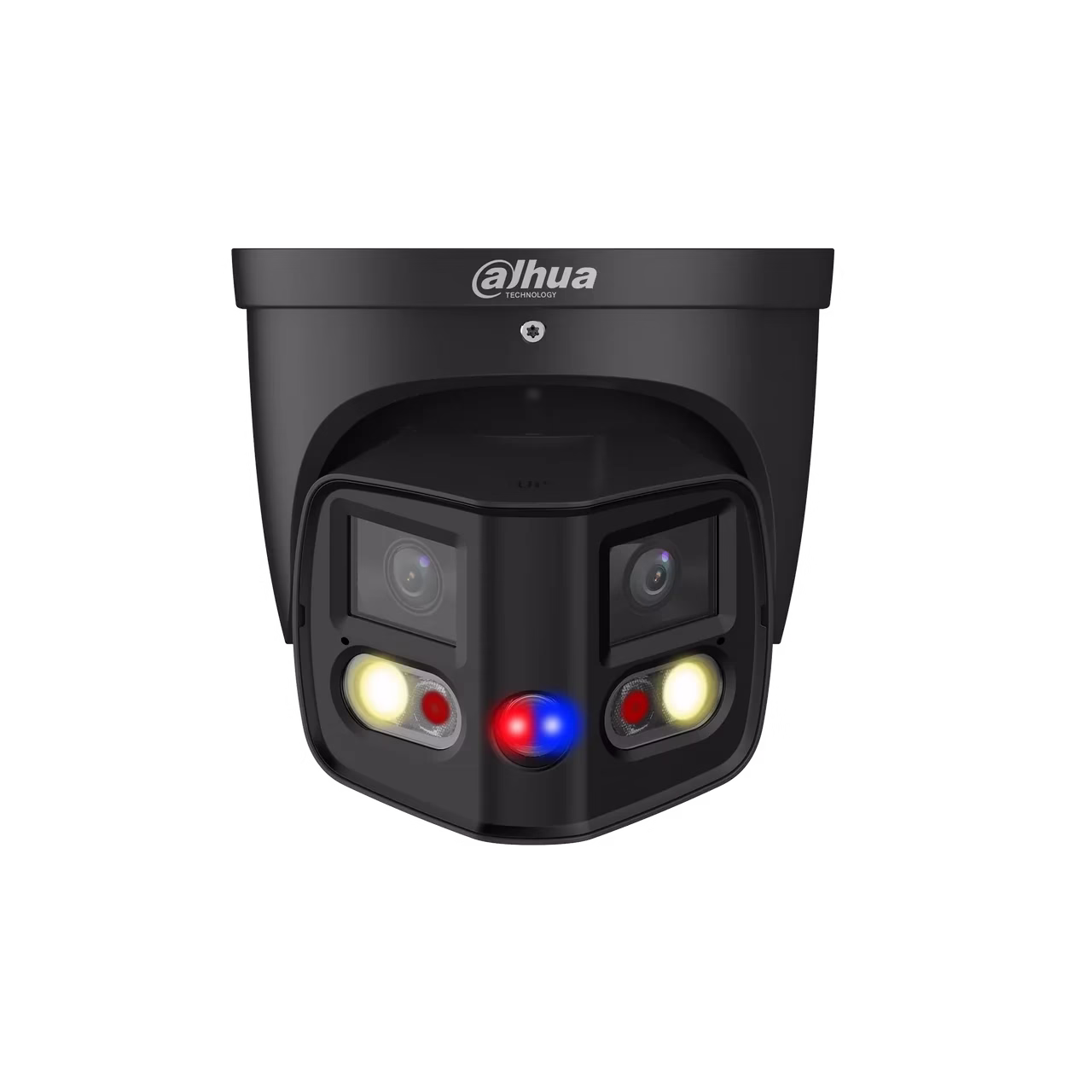

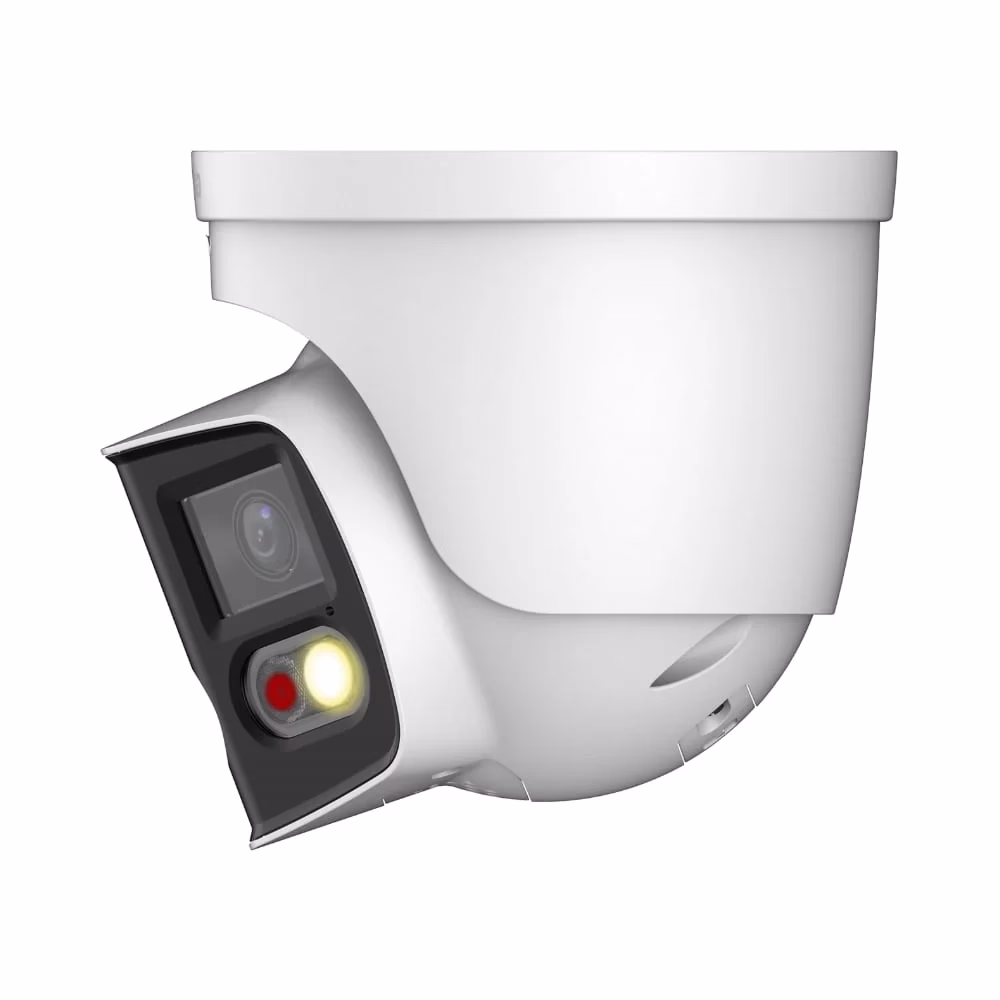

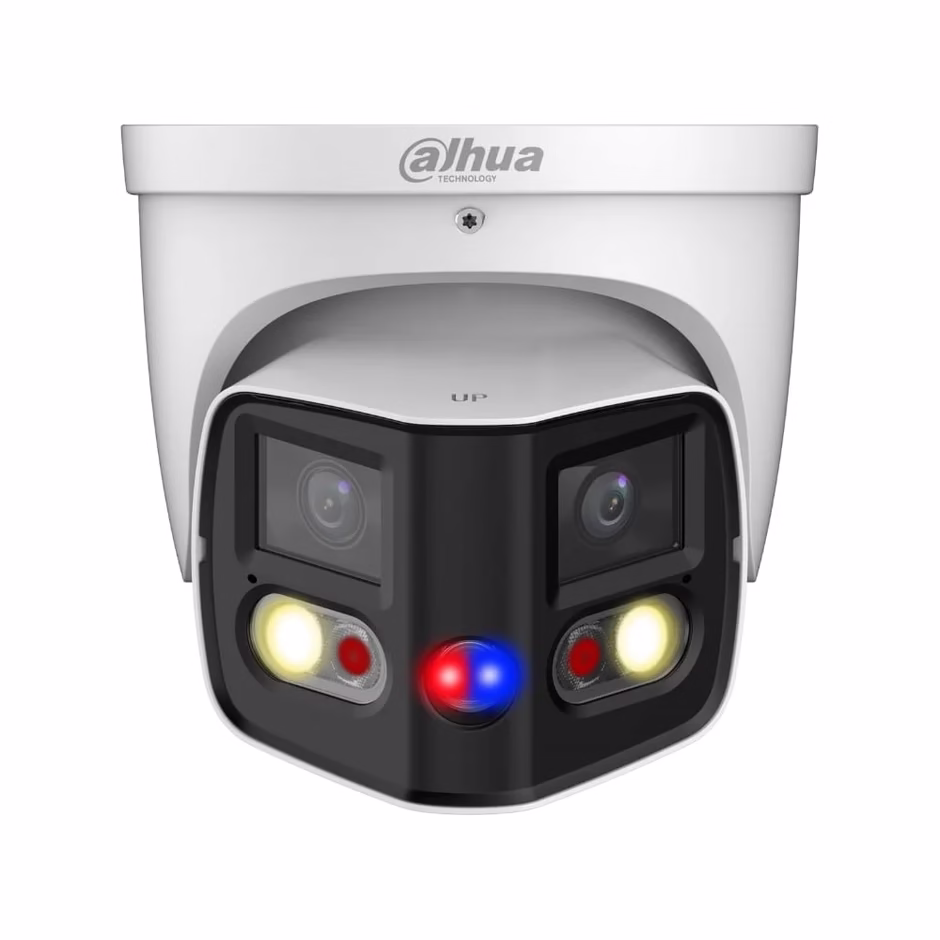

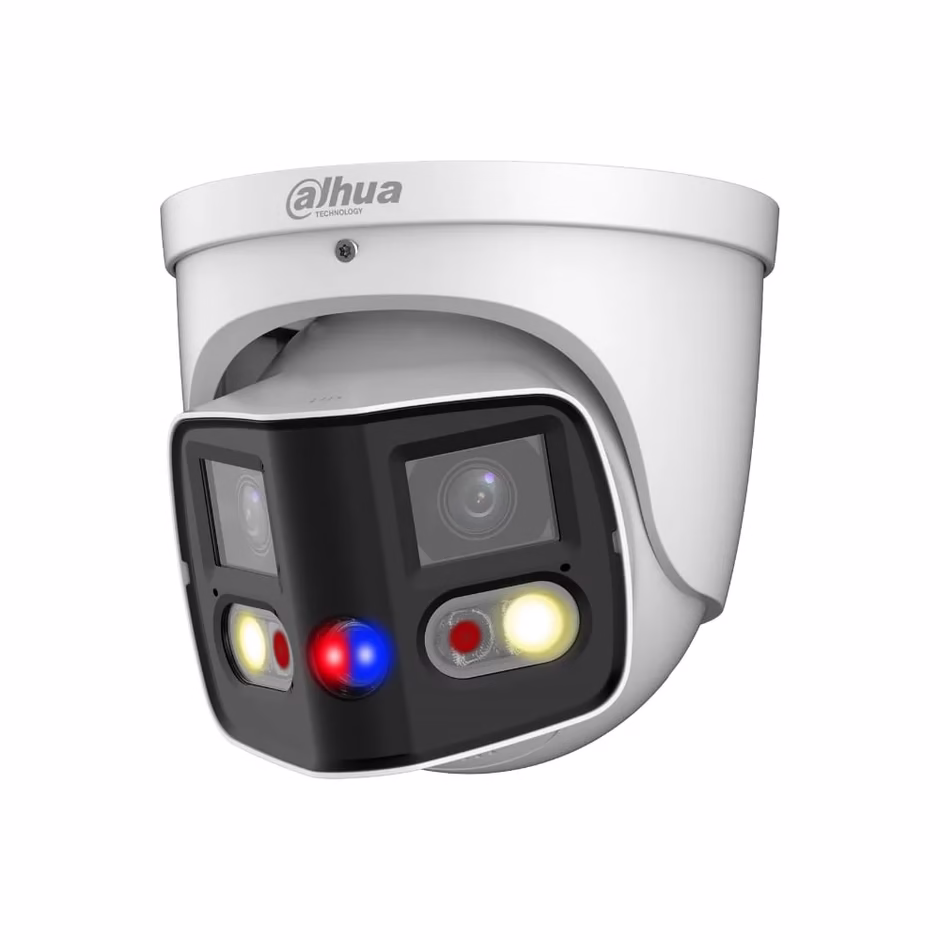

Dahua DH-IPC-PDW3849-A180-AS-PV – 8MP (2x4MP) Duo Splicing Camera with 180° view

Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1860)@20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 4.0.
> One-tap arming/disarming through alarm input.



Description

Dahua DH-IPC-PDW3849-A180-AS-PV – 8MP (2x4MP) Duo Splicing Camera with 180° view

Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1860)@20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 4.0.
> One-tap arming/disarming through alarm input.



Key Features

  • 8MP (2x4MP) resolution with 180° panoramic Duo Splicing view
  • Smart Dual Light: IR + Warm LED with auto switching
  • TiOC: Red/blue light warning and built-in siren
  • SMD 4.0: Smart motion detection with AI human/vehicle filtering
  • Two-Way Audio: Built-in mic and speaker
  • IP67 rated metal housing for outdoor environments
  • EPTZ for target tracking with zoom
  • Supports up to 256GB Micro SD card
  • Remote access via DMSS app (iOS & Android)

Technical Specifications

Specification Details
Image Sensor Dual 1/2.7″ CMOS
Max. Resolution 4096 × 1860 @ 20fps
Lens 2.8mm fixed focal, F1.4
Field of View Horizontal 180°, Vertical 86°
Illumination IR: 25m, Warm Light: 20m
Audio Built-in dual mic and speaker
Video Compression H.265, H.264, Smart Codec
Storage MicroSD up to 256GB, NAS, FTP
Alarm I/O 1 in / 1 out
Audio I/O 1 in / 1 out (RCA)
Power Supply 12V DC ±30%, PoE (802.3af)
Power Consumption Max. 10.85W (PoE)
Protection IP67 rated
Dimensions Φ122 mm × 135.2 mm
Weight Net: 990g | Gross: 1.15kg
