Kit contains:

1 x Network Access Controller
4 x Tecom Smart Card Readers

Description

Kit contains:

1 x Network Access Controller
4 x Tecom Smart Card Readers

Overview

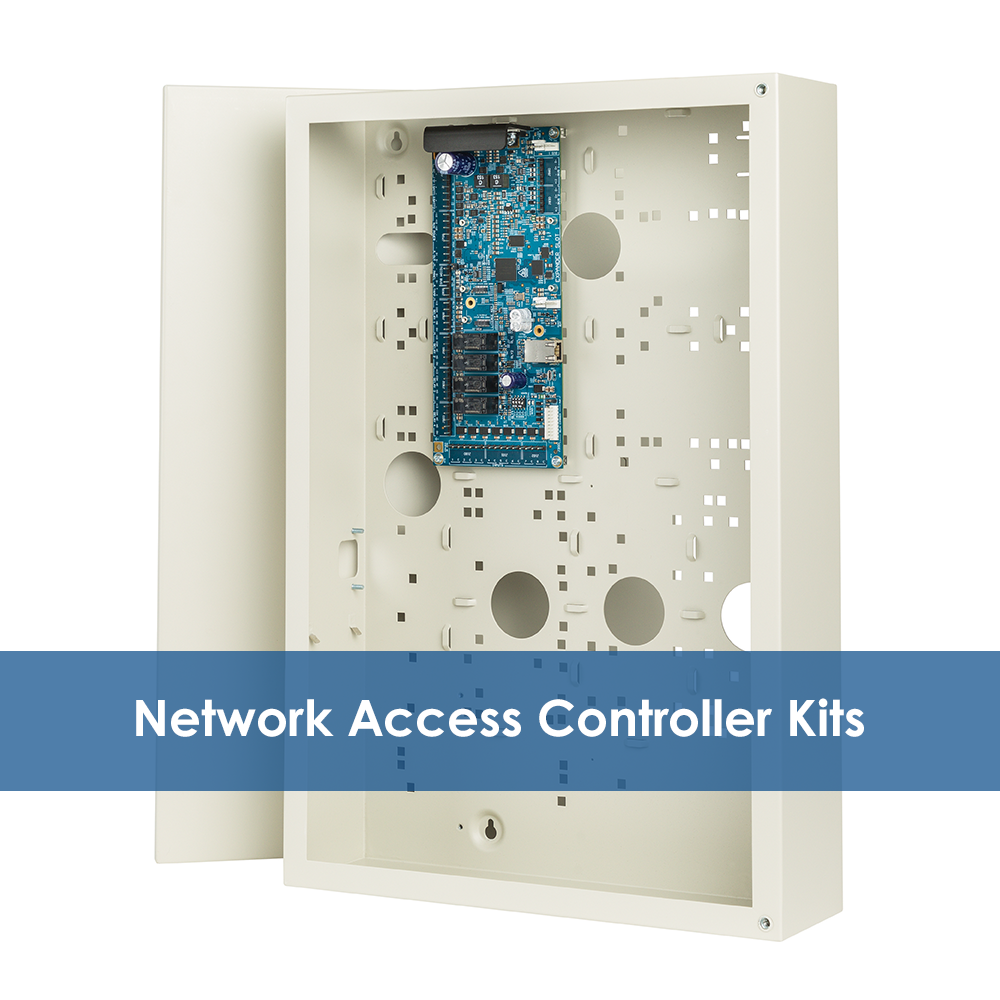

The Network Access Controller is an access control solution allowing you to manage your door and lift access requirements as well as supporting intrusion applications.

Flexible connection options mean the Network Access Controller can connect directly to Management Software without the need for other panel hardware as well as being able to connect to the ChallengerPlus panel for access control and intrusion capability.

A powerful CPU ensures the Network Access Controller suits a range of applications, from small standalone systems through to much larger systems covering hundreds of thousands of users.

This large memory capacity allows the Network Access Controller to locally store up to 250,000 users. Combined with more than 10,000 flexible access groups and user configurable override times on each door, the Network Access Controller is suitable for even the most demanding security requirements. T

he Network Access Controller is specially designed with advanced power and battery management for superior reliability and peace of mind. Each battery terminal is capable of charging a completely flat battery back to operating status which allows your Network Access Controller sites to continue operating at their best in the event of a power outage. In the event of a complete, extended power failure your system will be back online within seconds.

Configuration of the hardware connected to each door or lift is fully customisable with the ability to select from onboard hardware, RAS devices or DGP devices. Coupled with advanced diagnostics available in CTPlus, the Network Access Controller is a complete solution for your access and intrusion needs.

Features

• Allows doors and lifts on a single controller

• Direct connection to supported software

• Compatible with ChallengerPlus panels

• Large memory capacity:

  • –250,000 users
  • 10,000 door groups
  • 50,000 history events

• Dual-BUS to support:

  •  Tecom RS-485 readers or expanders
  • OSDP v2
  • Aperio
  • Salto

• Remote flash firmware upgradeable • Onboard ethernet • 8 inputs onboard

• 6 readers per door with any combination of in/out

• Relay expander port

• Support for multiple end-of-line (EOL) resistor values

• Scheduled lock/unlock override times

• User configurable door override times

• Card data can be up to 128 bits on every credential

• Each user can have a 10 digit PIN

• Map up to 32 inputs and 16 outputs for use with ChallengerPlus panel

• Up to 100 actions can be scheduled such as lock/unlock and enable/disable.

• Internal error analysis (can find and repair faults avoiding unit malfunction)
